September 2009
With the bike painted and largely assembled it was now time to add the finishing touches and attend to the job we'd been avoiding for six months - the electrics. |
| |
|
 |

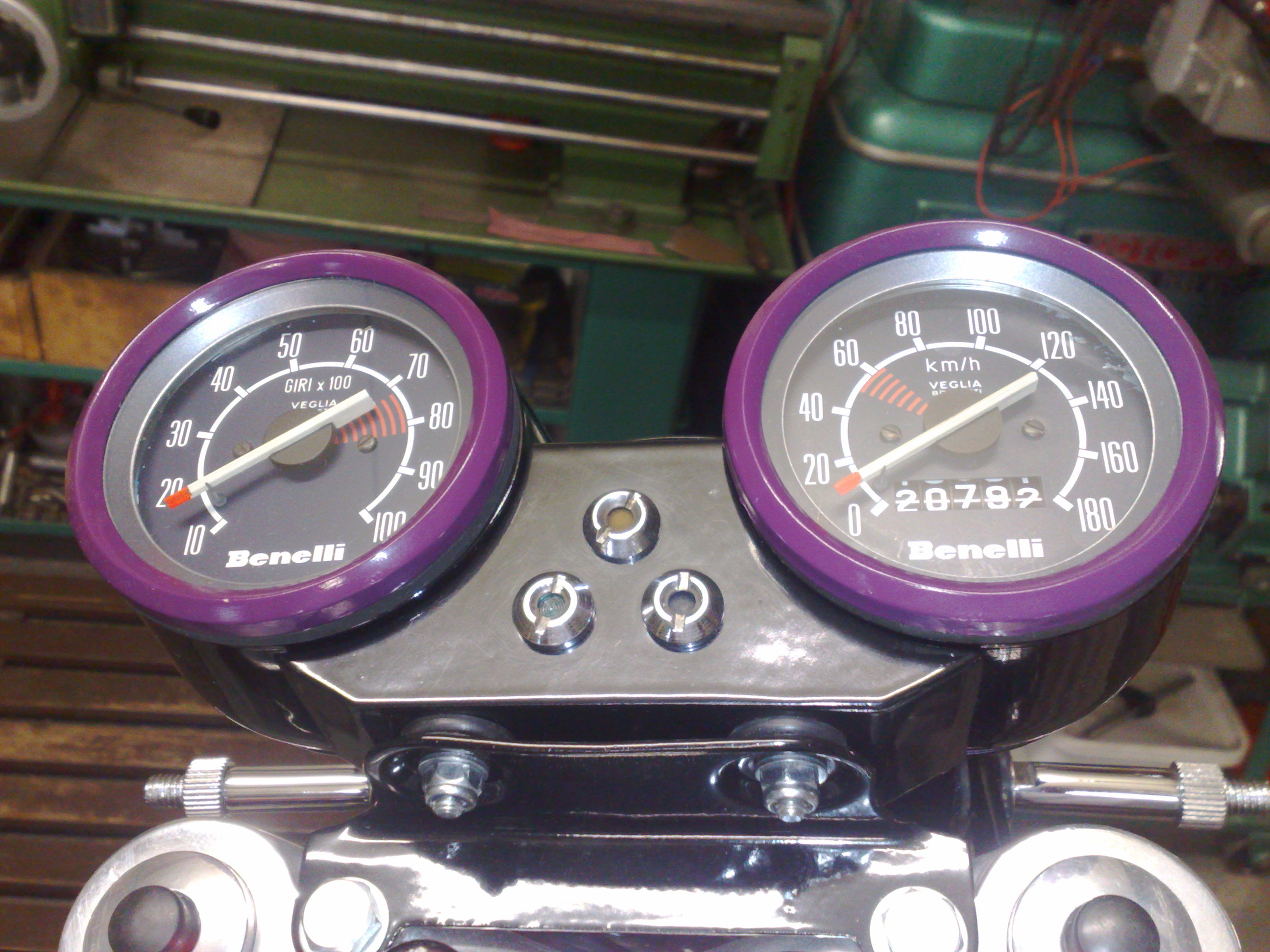

Instruments
This is called "style". There is no other explanation for it. Why a motorcycle company would choose to manufacture bikes with purple instrument bezels is something which will probably be forever lost to us. |
| |
|
 |

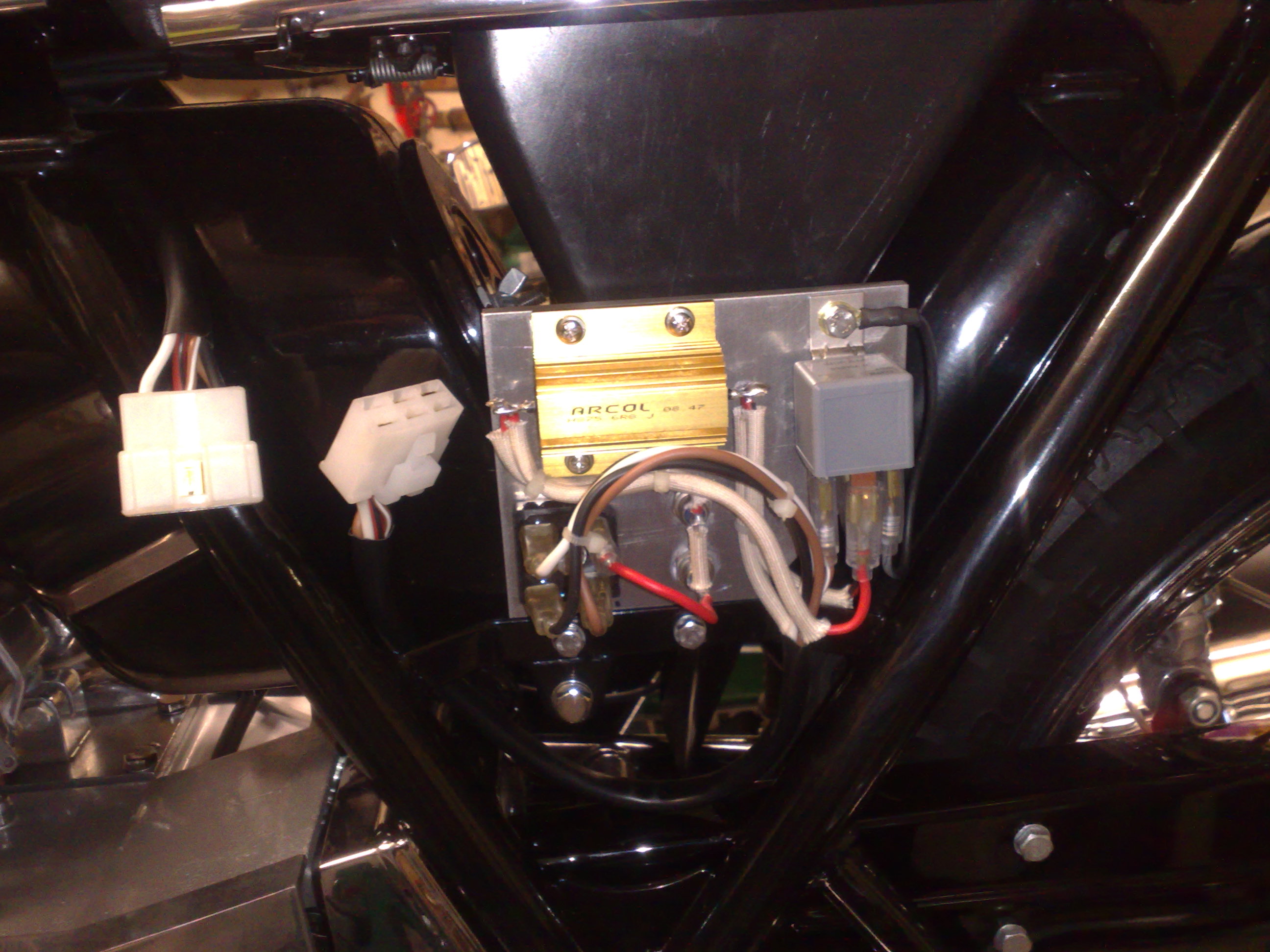

The solution
The Benelli 2C carries with it a reputation for extraordinary electrical unreliability. We decided to largely throw the whole lot away and start again with something simpler and more rustic. What you see here is a big aluminium heat sink, a bridge rectifier (takes the AC current from the dynamo and converts it to DC), a zener diode to limit the voltage to 7 volts, a nice big ballast resistor for the trickle current back to the battery and a simple relay to override the ballast resistor when we switch the headlights on. Simple huh? So far, three bikes and 5,000 kilometres - all running well. |
| |
|
 |

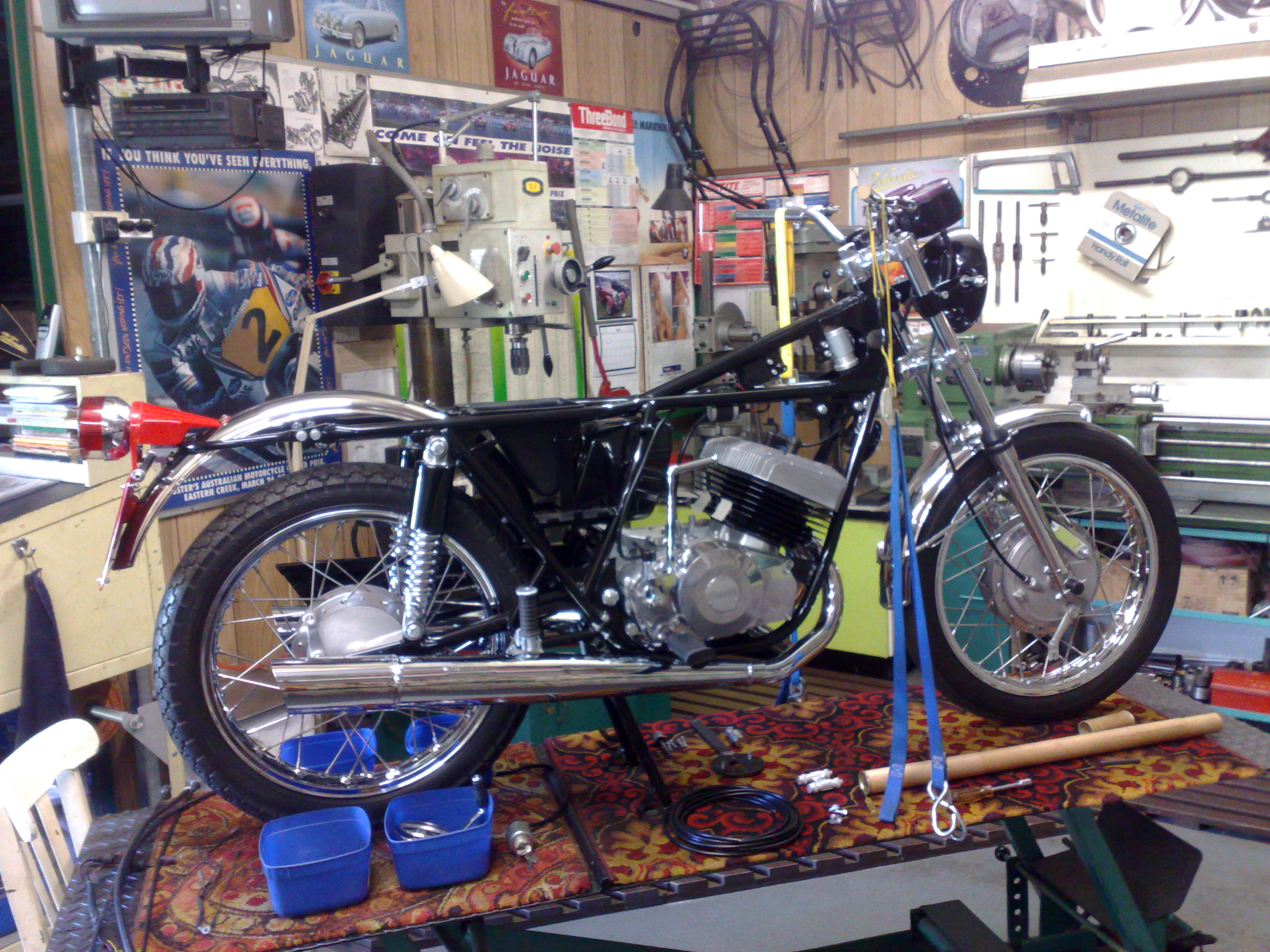

Finished at last!
This was the actual day she rolled out of the shed to see sunlight for the first time. I'm a bit biased but I think it looks great just standing still. |
| |
|
 |

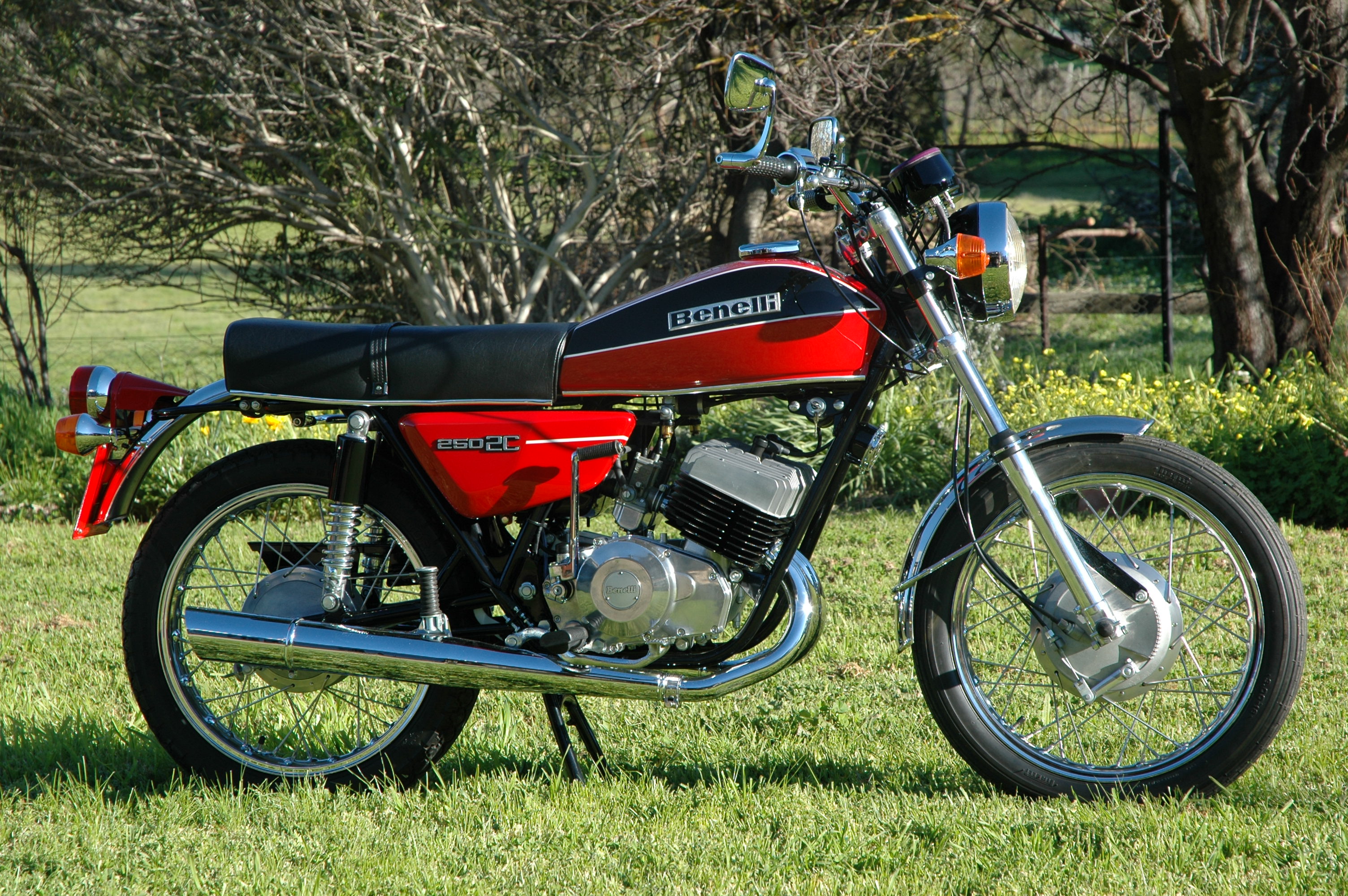

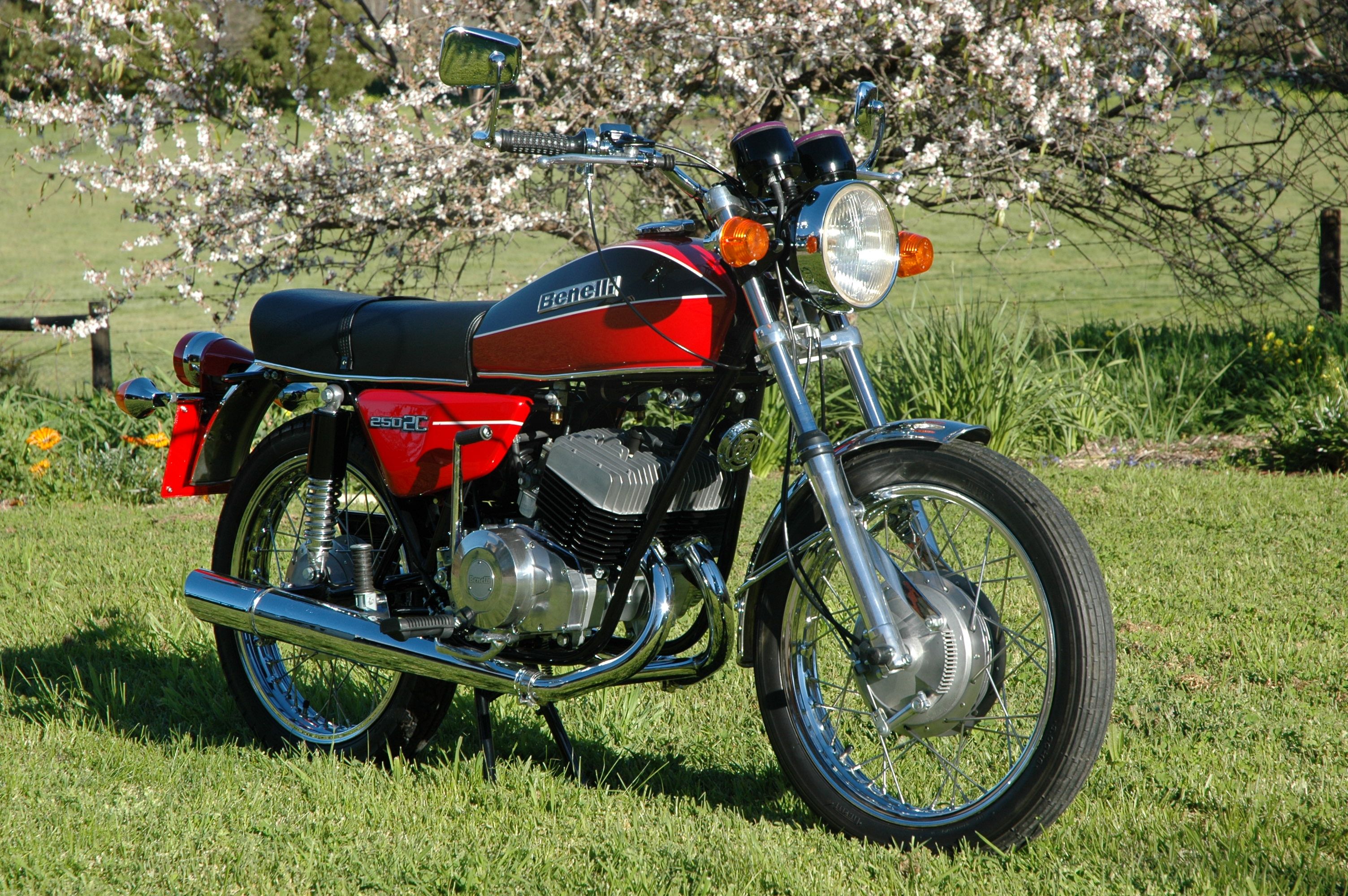

The Photo Shoot
No restoration is complete before the big photo shoot. There is a good reason for all this. Sadly, the first day the bike heads out onto the road it starts to deteriorate and will never quite look the same.
|
| |
|
 |
What next?
During the restoration of my bike we were actually restoring three of these machines. The first thousand kilometres on each will, no doubt, have its share of headaches.
I will write an overview of the bike after we've completed the run-in period.
|
|
|
